Introduction:

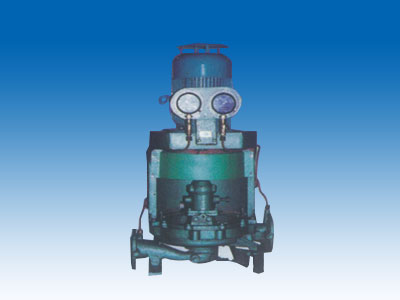

CLV series marine vertical centrifugal pumps can be directly intalled on the foundation the bearing frame,pump cover and impeller can be dismountsd without dismounting pump baby, pump pipe,driving motor and motor bracket. CLV pumps can be used as marine ballast-bilge pump, cooling pump and fire pump. And it can transport seawater,fresh water and other incorrosive liquids. The temperature of the transported liquid don't exceed 75℃. CLV pump can be matched self-priming installation according to user's requipment.
The typical example and its explanation for the pump type
For example : CLV80-220A
80-entrance diameter of the pump,mm
CLV- marine vertical centrifugal pump.
220-nominal diameter of impeller
A-archetype of impeller
I or II -impeller after cutting its diameter
Main technical performance parameters
When the freauency of the driving motor is 50Hz,the main technical performancy parameters are showed in table 1.And whe the frequency of the driving motor is 60Hz,the main technical performancy Are showed in table 2.
Table1
| Type | voltage 380V Frequency 50Hz | ||||||
|---|---|---|---|---|---|---|---|
| Main technical Performance parameters | |||||||
| Capacit m³/h | Head m | Speed r/min | NPSHr m | Shaft power kW | Matched power kW | Pump weight Kg | |
| CLV65-300A | 30 | 28 | 1450 | 2.3 | 4.4 | 5.5 | 210 |
| CLV65-AⅠ | 30 | 21 | 1450 | 2.3 | 3.5 | 4 | 182 |
| CLV65-350A | 25 | 41 | 1450 | 2.0 | 5.9 | 7.5 | |
| CLV80-220 | 45 | 62 | 2900 | 3.5 | 12 | 15 | |
| CLV80-300A | 46 | 28 | 1450 | 2.5 | 5.5 | 7.5 | |
| CLV80-300AⅠ | 46 | 25 | 1450 | 2.5 | 5.0 | 7.5 | |
| CLV80-300AⅡ | 46 | 21 | 1450 | 2.5 | 4.4 | 5.5 | |
| CLV80-350A | 54 | 41 | 1450 | 2.8 | 10.2 | 15 | |
| CLV80-350AⅠ | 42 | 41 | 1450 | 2.8 | 8.3 | 11 | |
| CLV100-220A | 95 | 68 | 2900 | 4.0 | 23.9 | 30 | |
| CLV100-220AⅠ | 87 | 55 | 2900 | 4.0 | 18.6 | 22 | |
| CLV100-300A | 83 | 28 | 1450 | 2.5 | 8.7 | 11 | |
| CLV100-AⅠ | 79 | 25 | 1450 | 2.5 | 7.5 | 11 | |
| CLV100-300AⅡ | 74 | 22 | 1450 | 2.5 | 6.3 | 7.5 | |
| CLV125-300A | 125 | 28 | 1450 | 3.0 | 17 | 22 | |
| CLV100-300AⅠ | 120 | 25 | 1450 | 3 | 14.6 | 18.5 | |
| CLV100-300AⅡ | 110 | 20 | 1450 | 3 | 10.7 | 15 | |
| CLV200-450A | 400 | 60 | 1450 | 3.7 | 82.7 | 90 | |
| CLV200-450AⅠ | 450 | 50 | 1450 | 4 | 79.6 | 90 | |
Table2
| Type | voltage 440V Frequency 60Hz | ||||||
|---|---|---|---|---|---|---|---|
| Main technical Performance parameters | |||||||
| Capacit m³/h | Head m | Speed r/min | NPSHr m | Shaft power kW | Shaft power kW | Pump weight Kg | |
| CLV165-300A | 36 | 40 | 1740 | 3.2 | 7.6 | 11 | 270 |
| CLV165-300AI | 36 | 30 | 1740 | 3.2 | 6.0 | 7.5 | 215 |
| CLV165-350A | 30 | 59 | 1750 | 2.8 | 10.2 | 15 | |
| CLV165-220A | 54 | 89 | 3480 | 4.9 | 20.7 | 22 | |
| CLV165-300A | 55 | 40 | 1740 | 3.5 | 9.5 | 11 | |
| CLV165-300AI | 55 | 36 | 1740 | 3.5 | 8.6 | 11 | |
| CLV165-300AⅡ | 55 | 30 | 1740 | 3.5 | 7.6 | 11 | |
| CLV165-350A | 65 | 59 | 1740 | 3.9 | 17.6 | 22 | |
| CLV165-350AI | 50 | 59 | 1740 | 3.9 | 14.3 | 18.5 | |
| CLV1100-220A | 114 | 98 | 3480 | 5.6 | 41.3 | 55 | |
| CLV1100-220AI | 104 | 79 | 3480 | 5.6 | 32.1 | 37 | |
| CLV1100-300A | 100 | 40 | 1740 | 3.5 | 15.5 | 18.5 | |
| CLV1100-300AI | 95 | 36 | 1740 | 3.5 | 13.0 | 15 | |
| CLV1100-300AⅡ | 89 | 31 | 1740 | 3.5 | 10.9 | 15 | |
| CLV1125-300A | 150 | 40 | 1740 | 4.2 | 29.5 | 37 | |
| CLV1100-300AI | 144 | 36 | 1740 | 4.2 | 25.2 | 30 | |
| CLV1100-300AⅡ | 132 | 29 | 1740 | 4.2 | 18.5 | 22 | |
